QR0195100JFR00

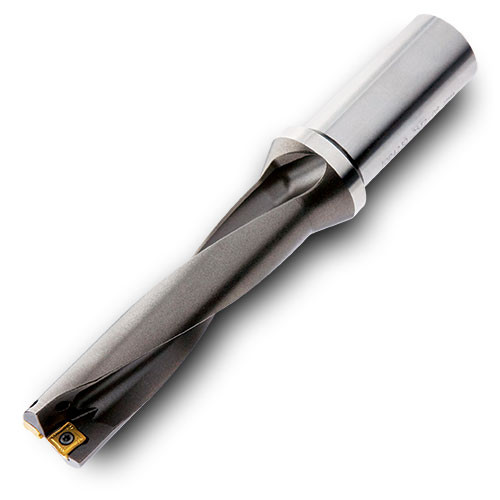

Indexable Insert Drill; 0.768″ Dia. × 3.937″ LU × 0.984″ Shank Dia. × 7.047″ OAL ; 5D ; Steel
| Cutting Diameter (DC) | 0.768″ | Cutting Item Count (CICT) | 2 |
| Usable Length (LU) | 3.937″ | Flange Diameter (DF) | 1.26″ |
| Application | | Drill Mill | Drilling | | Point Length (PL) | 0.045″ |
| Connection Diameter Machine Side (DCONMS) | 0.984″ | Measurement Type | Inch |
| Shank Size (SS) | 1″ | Length Group | 5D |
| Tool Type | Indexable Drill | Effective No. of Teeth | 1 |
| Shank Length (LS) | 2.205″ | Body Material | Steel |
| Functional Length (LF) | 4.843″ | Decimal Equivalent | 0.768″ |
| Overall Length (OAL) | 7.047″ |
Product Features
| Family Description | Note: Brass coolant fitting should be ordered separately | Country of Origin | Usa |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.794
