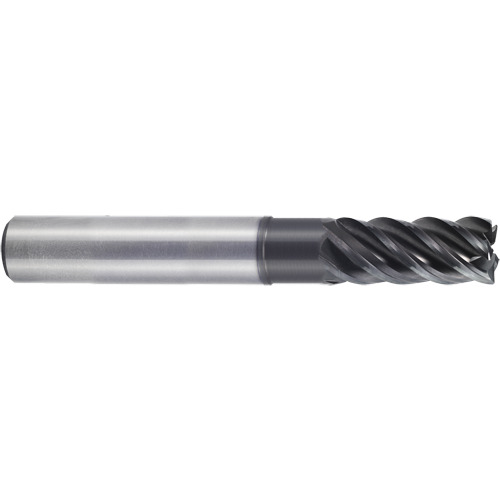

Square End Mill; 5/8″ Dia. × 3/4″ LOC × 5/8″ Shank Dia. × 6″ OAL ; 5 FL ; Carbide ; Y-Coating ; Series UGMH07
| Cutting Diameter (DC) | 5/8″ | Usable Length (LU) | 3-3/8″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 3/4″ | Corner Radius (RE) | 0.06″ |
| Overall Length (OAL) | 6″ | Tool Type | 5 Flute Square Extended Neck |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.625″ |
| Coating | AlCrN | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Series/List # | UGMH07 |
| Flute Helix Angle (FHA) | Variable | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| End Shape | Square |
Product Features
| Country of Origin | KR |
Shipping Info
Package Length
6.5
Package Width
1
Package Height
1
Package Weight
0.921
