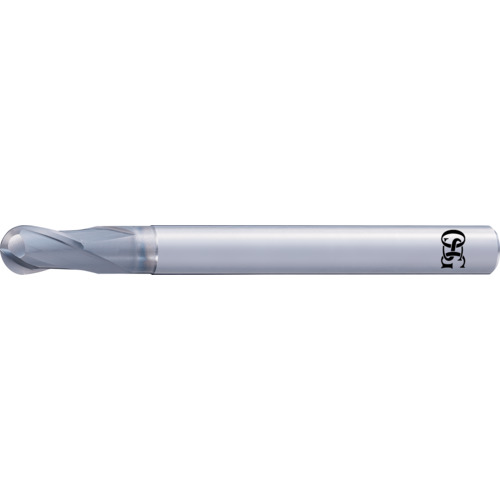

1/4″ Dia. × 1/4″ Shank × 0.250″ DOC × 3″ OAL, Carbide DURO, 2 Flute, Shrink Fit, Ballnose End Mill
| Cutting Diameter (DC) | 1/4″ | Neck Diameter (DN) | 1/4″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Neck Length (LN) | 1/4″ |
| Depth of Cut Maximum (APMX) | 1/4″ | Tool Type | Center Cut |
| Overall Length (OAL) | 3″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Shank Standard | h6 |
| Coating | AlTiSiN | Decimal Equivalent | 0.25″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 8410 |
| Corner Radius (RE) | 1/8″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.084
